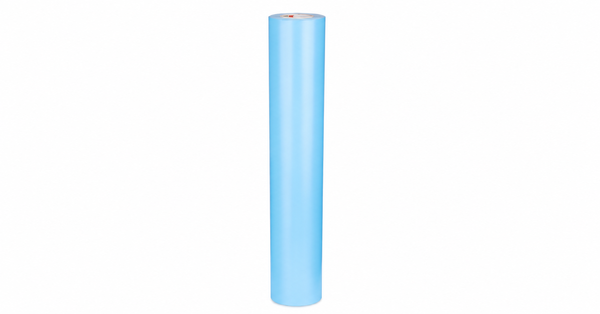

3M AF536
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Smooth Composite Surface Finish
- Optional Lightning Protection Conductor
- Drapeable Repositionable Layup
Product Description
3M Scotch-Weld Composite Surfacing and Lightning Protection Film AF 536 is a translucent-white modified epoxy film for general-purpose surfacing of composite structures. The drapeable, conformable film creates a smooth, void-free cured surface that can reduce preparation before painting. Repositionable room-temperature handling supports controlled layup, while blue polypropylene and paper liners protect opposite sides. AF 536 is available as surfacing-only film or with an integrated copper conductor, allowing the selected construction to combine surface finishing with lightning-strike protection during aerospace composite manufacturing.
Key features
- Smooth Composite Surface Finish: The cured film creates a glossy, void-free surface for reduced pre-paint preparation.
- Optional Lightning Protection Conductor: Selected AF 536 constructions integrate expanded or perforated copper foil.
- Drapeable Repositionable Layup: Conformable handling supports placement on composite tools and prepreg surfaces.
Applications
Composite aircraft surfacing and lightning-strike protection using the selected conductor or non-conductor construction.
TDS, SDS & Technical Documents
Technical Specifications
General Properties
Additional Information
As-supplied / before-processing properties
Construction options are separated to preserve conductor and non-conductor product scope.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Color | Translucent white | - | As supplied |
| Protective liners | Blue polypropylene; paper | - | Opposite film surfaces |
| Room-temperature handling | Drapeable and conformable | - | Before cure |
| Tack | Adheres to release-coated tools | - | At room temperature |
| Construction options | Surfacing film; expanded copper foil; perforated copper foil | - | AF 536 family |
